ALLWEI PPS600-5 Portable Power Station | 500W 512Wh
Description
BRIDNA PPS600-5 500W Technical Specification | |

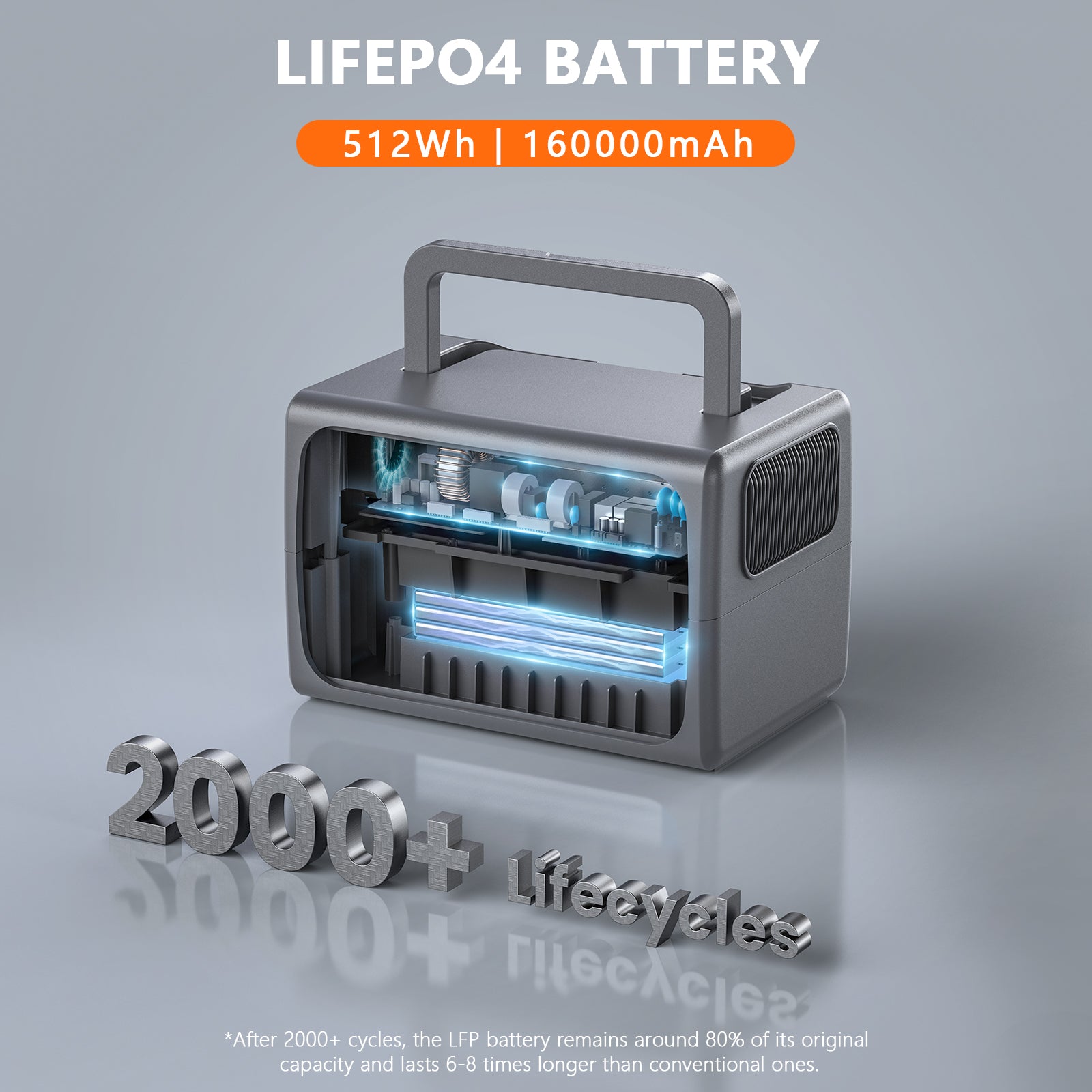

Battery Capacity | LiFePO4 512Wh±5%(20Ah/25.6V) |
AC Input Charging | AC100~120V/200W Max |
Car Input Charging | DC12V~24V/120W Max |

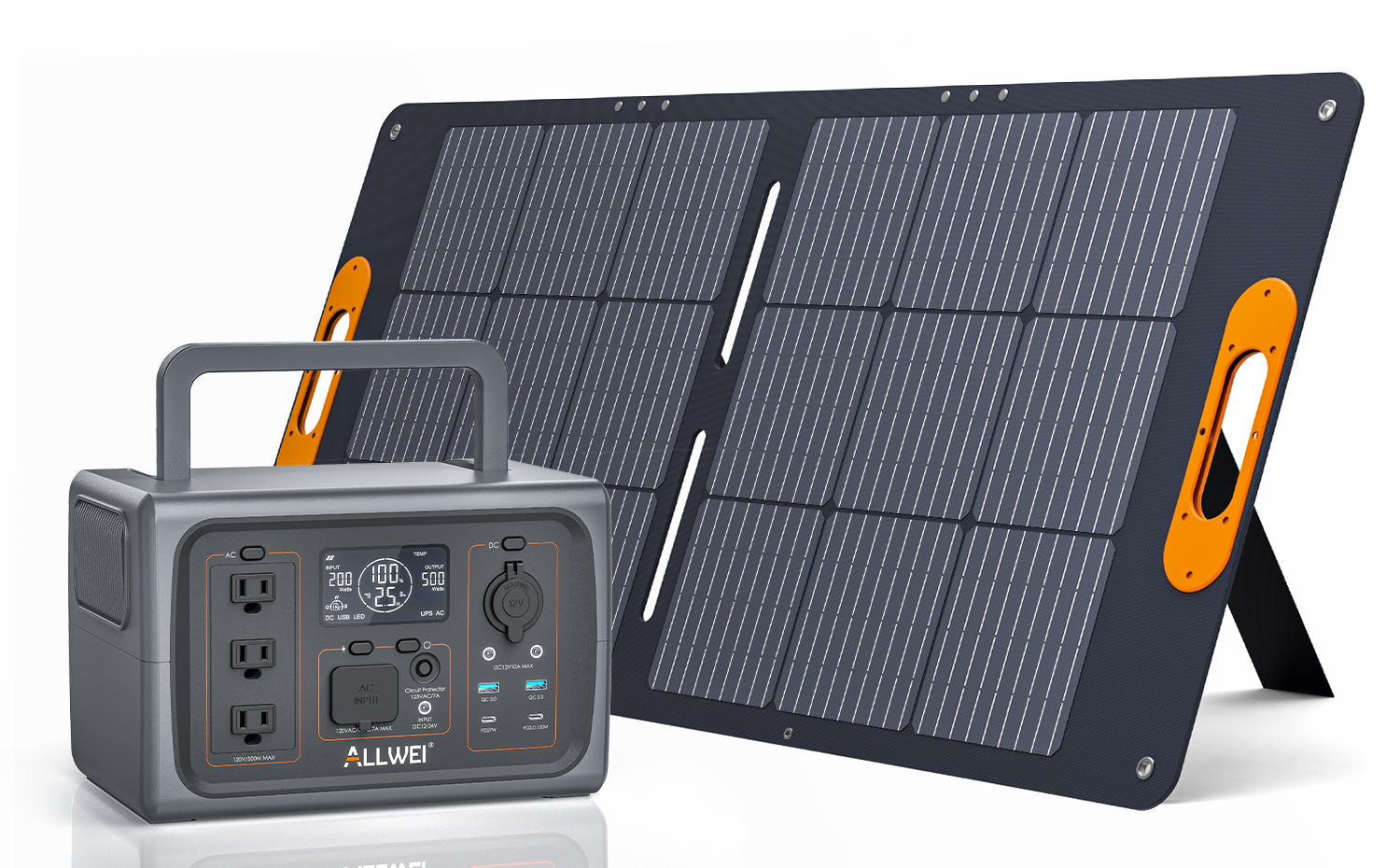

Solar Input Charging | DC12V~24V/120W Max |
Output Port | 3 * AC Output: 120V, 60Hz, 500W, Peak 1000W |
USB-A1:QC24W Max (5V3A&9V2A&12V2A QC3.0) | |
USB-A2:QC24W Max (5V3A&9V2A&12V2A QC3.0) | |
USB-C1:PD27W Max (5V2.4A&9V3A&12V2.25A PD3.0) | |
USB-C2:PD100W Max (5V3A&9V3A&12V3A&15V3A&20V5A PD3.0) | |
1 * Cigarette Lighter | |
2 * DC5521 Rated Output 13.8V/10A(Total 10A Max) | |
AC Output Waveform | Pure Sine Wave |
LED Light | 3W Max, 3 Levels(L/M/H adjustable), SOS function |
Safety Protection | Short-Circuit |
Over-Current | |
Over-Voltage | |
Low-Voltage | |
Over-Load | |
Over-Temperature | |
Operation Temperature | 0~40℃(32~104℉) |
Battery Life Cycle | 2000times DOD≥80% |
Pass-Through Charging | Support |
Weight | 6.3kg/13.9lbs |
Package Contents | 1 * AC Power Cord |
1 * DC Cable | |
1 * MC4 Cable | |
1 * User Manual |
Instructions for use:
- Run time = 512Wh*90%(conversion rate)/Your device's ower(Watts).
- Support all electronic devices less than 500 Watts.
- It is recommended to use a DC port instead of an AC outlet to power your CPAP machine.
- The usage time for refrigeration machines with compressors mainly depends on the temperature setting and start frequency of compressors, it’s usually lasting longer time than a certain referencetime.
- The above charging times are calculated as a reference guide only. The actual usage time will depend on the power of the connected devices.
Auto-Sleep Mode
To avoid forgetting to turn off the output during use, which will lead to unused battery consumption, this unit will turn to Auto-Sleep Mode when no device is connected or the connected device is less than or equal to a certain value. The unit will automatically shut down after 1 hour. Refer to the table below for more details:
Output | Output Power | Defaults |
---|---|---|
AC Output | ≤2W | The device will automatically shut down after 1 hour |
USB Output | ≤2W | The device will automatically shut down after 1 hour |
Car Output | ≤2W | The device will automatically shut down after 1 hour |
Press any of the port buttons to restart the power station. | ||
The unit will enter into Auto-Sleep Mode when not output is detected after 1 hour. User can switch the time through the following setting. Set up time to 1 hour or 12 hours by long pressing "USB" button for 5 seconds. Please check the time on the LCD screen within 5 seconds after hearing the buzzer sounds. It shows the set standby time. | ||
The Auto-Sleep time is 1 hour: If there is no power output within 1 hour, the Auto-Sleep Mode is activated, and the power station will be automatically turned off. | ||
The Auto-Sleep time is 12 hours: If there is no power output within 12 hours, the Auto-Sleep Mode is activated, and the power station will be automatically turned off. |
Precautions
- When the battery capacity drops to 20%, recharge the power station in time to extend the battery life.
- This power station has a built-in lithium battery which is highly sensitive to high temperature - Keep it away from heat sources like direct fire or any heat sources.
- When not using the unit for extended periods of time, power off the unit and disconnect the AC adapter from the outlet.
- Always be prepared - Charge the unit every three months if it is not used, charge the unit to 80% capacity for long-term storage.
- Keep away from moisture or water. Store in a dry and cool place, temperature -20°C~60°C, humidity 20%~85%RH, clean the equipment gently and carefully with a dry cloth.
- Do not disassemble the microwave, puncture, incinerate, or insert foreign objects into the power station.
- Do not stack any objects on top of the device, whether in storage or in use. Do not crush, bend, shred, drop, or place heavy objects on top of the device.
- Do not use the product if damaged or punctured.
Common Troubleshooting
Failure Description | Types | Solutions |
---|---|---|
The unit cannot be charged from AC wall outlets | AC charging fault | 1. Please ensure to use the original AC Power Cord. |
2. Please check if the AC wall plug is correctly connected. | ||
If not solved, please contact our after-sales service. | ||
The unit cannot be charged from a solar panel | DC solar charging fault | 1. Please ensure the solar charging connection is correct under the user manual. |
2. Please ensure the specifications of the connected solar panel meet specified standards. | ||
3. Please ensure solar panel charging in a sunlight environment. | ||
If not solved, please contact our after-sales service. | ||
LCD Screen icon flash "AC" "DC" "USB" |
Over-current protection | Resolve the problem by pulling out a plug or removing electrical devices. The unit can recover itself after re-start. If not solved, please contact our after-sales service. |
Short circuit protection | ||
Over-voltage protection | ||
Low-voltage protection | ||
Overload protection | ||
High-temperature icon continuously appears | High-temperature warning | The power station can recover itself after the battery is cooled. |
Video
Features Summary
Powerful power provides support for a wide range of devices
BRIDNA PPS1200-3 portable power station boasts an impressive 1200-watt output, facilitating the operation of high-power equipment. It's the ideal power solution for various life scenarios, including outdoor camping, RV living, home backup power, and off-grid adventures.
Power without Limits, Travel without Worries
BRIDNA PPS1200-3 supports versatile charging options, including 700W AC charging, 400W solar charging, 24V car charging, and more. These charging modes ensure the BRIDNA PPS1200-3 portable power station maintains ample power in any scenario.
AdvancedLCD Display
The LCD display shows batterycapacity, remain charge/dischargetime, input/output power and yourdevice watts, etc
Five-Year Service
Charge and empty most devicesover 1500+ times before itscapacity drops to 80%. That's prettymuch 5 years service.
Packing List
BRIDNA PPS1200-3 1200W Portable Power Station Backup Content
